Těžební pneumatiky

Min. objednávka: 10 ks
JABIL Tire Factory je profesionální výrobce pneumatik v Číně, který přímo dodává vysoce kvalitní důlní pneumatiky. Tyto pneumatiky jsou určeny pro důlní sklápěče a velké stavební stroje a dokážou se přizpůsobit složitému důlnímu prostředí a mají vysoký výkon. Zavázali jsme se poskytovat spolehlivé důlní pneumatiky pro důlní vozidla, abychom zajistili bezpečný a efektivní provoz vozidel ve složitých silničních podmínkách, a zároveň poskytujeme řadu různých možností pro různé důlní operace, které splňují různé potřeby.

Odeslat dotaz

Popis výrobku

As a professional manufacturer from China, JABIL Tyre has always focused on providing suitable and durable mining tires for the mining field.

We have different tread designs for different types of mining operations and mining vehicles, providing a variety of options to meet diverse needs.

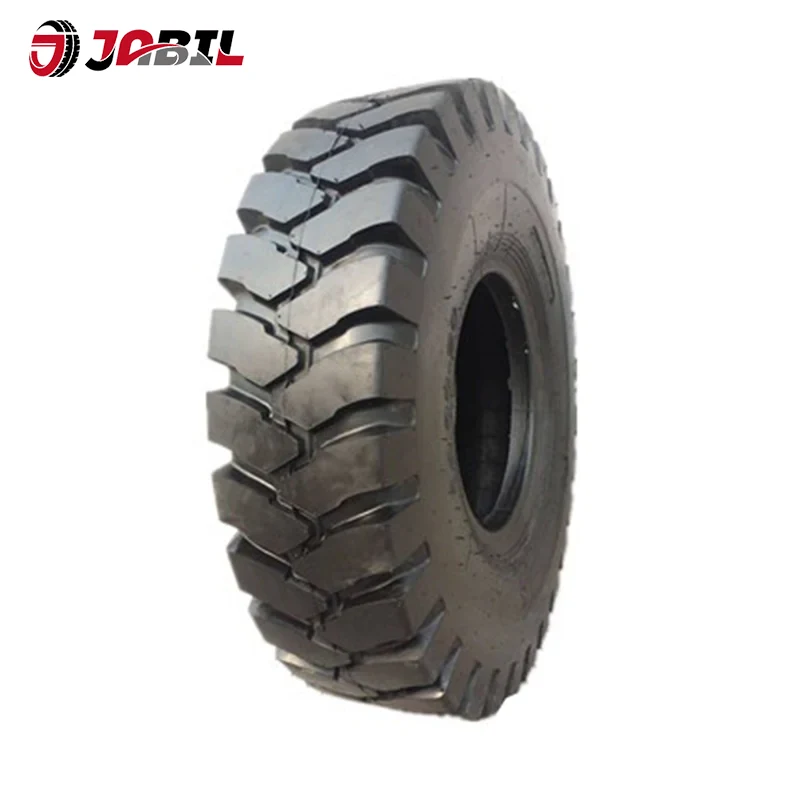

E-3A

E-3A mining tires are high-performance tire products specially designed for complex and harsh working conditions in mines. They use advanced rubber formula and unique tread pattern design to provide excellent grip, wear resistance and stability for mining vehicles, effectively cope with various complex road conditions such as rocks, mud, steep slopes in mining environments, and ensure efficient and safe operation of vehicles in mining operations.

Product Parameter(Specification)

Pattern	Size	PR	Standard Rim	Overall Dia	Section Width	Max Load(KG)		Max Pressure(Kpa)
Pattern	Size	PR	Standard Rim	mm	mm	10km/h	50km/h	10km/h	50km/h
E-3 A mining tyre	14.00-25	36	10	1370	375	5600		650
E-3 A mining tyre	14.00-24	32	10	1320	325	10900	6150	1050	750

Product Feature And Application

Product Feature

✔

Strong tyre body:

Multi-layer cord and thickened sidewall, impact and puncture resistance.

✔

Super wear-resistant:

High wear-resistant rubber formula greatly improves the wear resistance of the mining tires. In the high-wear operating environment of mines, it can significantly extend the service life of the tire, reduce the replacement frequency, and reduce the user's cost of use.

✔

Super load-bearing capacity:

Suitable for rigid dump trucks and heavy-duty transport vehicles.

Application:

Suitable for large mining dump trucks (such as Caterpillar, Komatsu, Volvo, etc.), commonly used in harsh road conditions such as open-pit mines and gravel yards.

Mining Tires

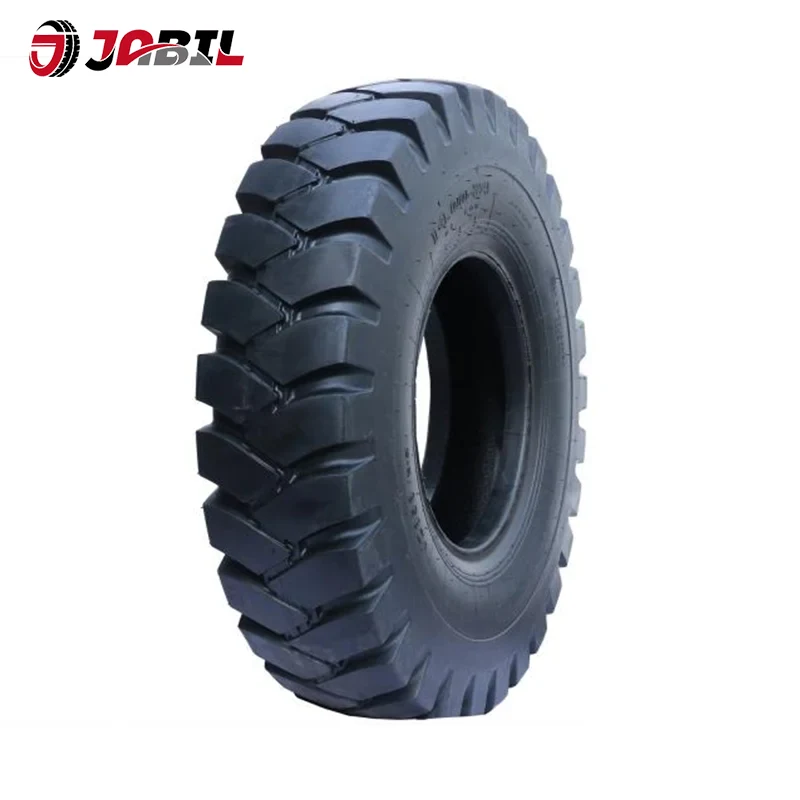

E-3B

E-3B mining tires are high-performance tire specially designed for complex mining operating environments, such as hard rock roads and high-intensity impact conditions. They can provide stable and reliable support for vehicles under complex mine road conditions, helping mining operating vehicles to efficiently complete various transportation and operating tasks.

Product Parameter(Specification)

Pattern	Size	PR	Standard Rim	Overall Dia	Section Width	Max Load(KG)		Max Pressure(Kpa)
				mm	mm	10km/h	50km/h	10km/h	50km/h
E-3 B mining tyre	14.00-24	24	10	1370	375	9500	5150	850	575
		28				10000	5600	925	650
	13.00-25	32	8.5	1300	350	10900		925

Product Feature And Application

Product Feature

✔

Large pattern design, deep grooves, strong cutting resistance.

✔

Excellent wear resistance:

The highly wear-resistant rubber formula specially formulated for mining can effectively resist the severe wear of tires caused by rocks, ores, etc. in mining environments.

✔

Excellent stability:

With high rigidity and stability, E-3B of mining tires can still maintain a good driving posture on hard rock roads or under high-intensity impact conditions, reduce vehicle bumps and shakes, and improve driving comfort and safety.

Application:

They are widely used in various mining vehicles, such as mining dump trucks, loaders, excavators, etc. And they can show excellent performance on hard rock roads or under high-intensity impact conditions, providing reliable tire protection for mining production.

Mining Tires

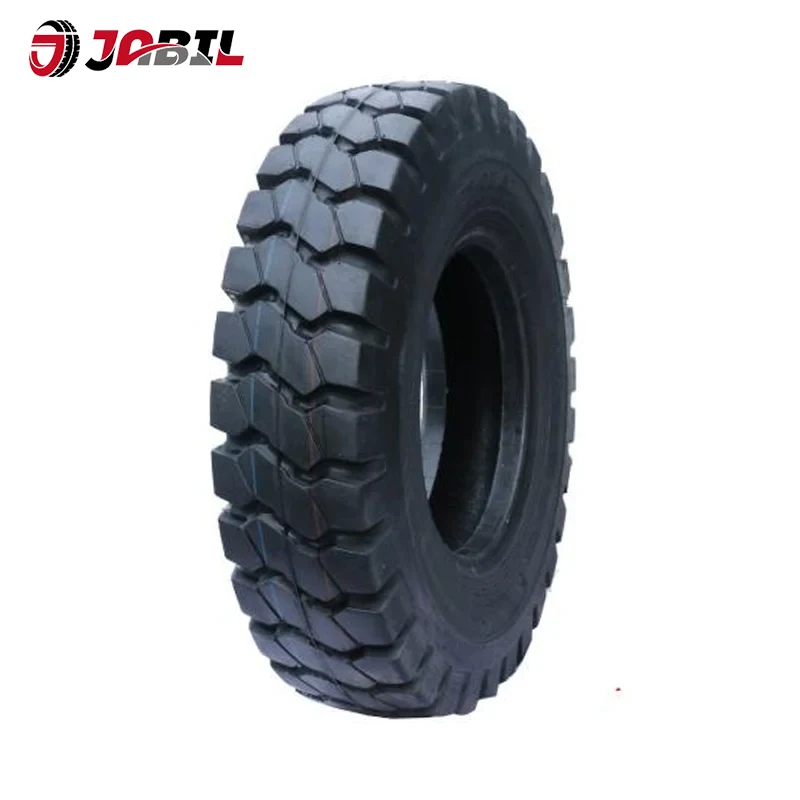

E-3C

The block pattern design of the E-3C mining tires can adapt to the working requirements of the loader in the mining environment. They have good performance in grip and wear resistance, helping the loader to operate efficiently under various working conditions in the mine.

Product Parameter(Specification)

Pattern	Size	PR	Standard Rim	Overall Dia	Section Width	Max Load(KG)		Max Pressure(Kpa)
Pattern	Size	PR	Standard Rim	mm	mm	10km/h	50km/h	10km/h	50km/h
E-3 C mining tyre	14.00-25	32	10	1370	375	5600		650
E-3 C mining tyre	14.00-24	32	10	1320	325	10900	6150	1050	750

Product Feature And Application

Product Feature

✔

The sidewall is hard and can provide better grip on extreme road surfaces.

✔

Ultra-high wear resistance and load-bearing performance can effectively resist damage to tires caused by sharp rocks on mine roads and extend tire service life.

Application:

They are mainly suitable for various types of mining loaders, mining dump trucks and other engineering vehicles. Whether tires are large-scale mining and transportation operations in open-pit mines or material handling in narrow tunnels in underground mines, they can be perfectly adapted to meet the strict requirements of tire performance in different operating scenarios.

Mining Tires

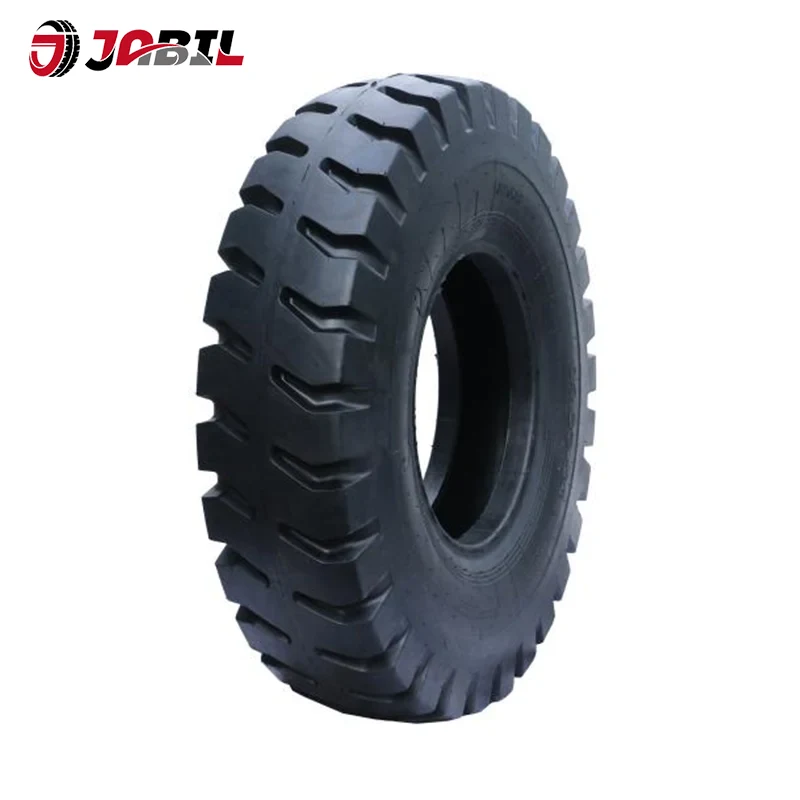

E-3J

E-4J mining tire is mainly designed for loose soil and soft base roads, such as coal mines and sand transportation.

Product Parameter(Specification)

Pattern	Size	PR	Standard Rim	Overall Dia	Section Width	Max Load(KG)		Max Pressure(Kpa)
				mm	mm	10km/h	50km/h	10km/h	50km/h
E-4 J mining tyre	14.00-24	24	10	1370	375	9500	5150	850	575
		28				10000	5600	925	650

Product Feature And Application

Product Feature

✔

Continuous transverse strip pattern:

Provides stronger traction and anti-skid performance, suitable for soft and muddy roads.

✔

Anti-skid reinforcement:

The shoulder pattern is optimized to prevent the vehicle from lateral deviation on soft ground.

✔

Low tread block height:

Reduces rolling resistance, suitable for long-distance transportation.

Application:

High humidity coal mines, Clay transportation, Sand and gravel storage areas.

Mining Tires
